Customers planning a borehole usually know the location but not the correct order of decisions. The practical answer to what you need before drilling a borehole in Kenya is a defined water need, site information, a professional hydrogeological assessment, the applicable WRA authorization, an itemised drilling and construction scope, and a budget that keeps testing, pumps, solar, storage and handover separate from the per-metre rate. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
What you need before drilling a borehole in Kenya: the seven decisions
Start by recording the exact site, ownership or authority to use the land, intended water uses, people or livestock served, irrigated area, expected daily demand, available power, storage objective, access constraints and desired start period. These answers determine which technical questions must be solved and allow every bidder to price the same brief. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Treat the project as seven connected decisions: define demand, assess the site, obtain the applicable authorization, drill and construct, develop and test, select the pump and power system, then complete inspection, permitting and handover. Skipping a stage does not remove its risk; it normally moves uncertainty into a later and more expensive decision. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.

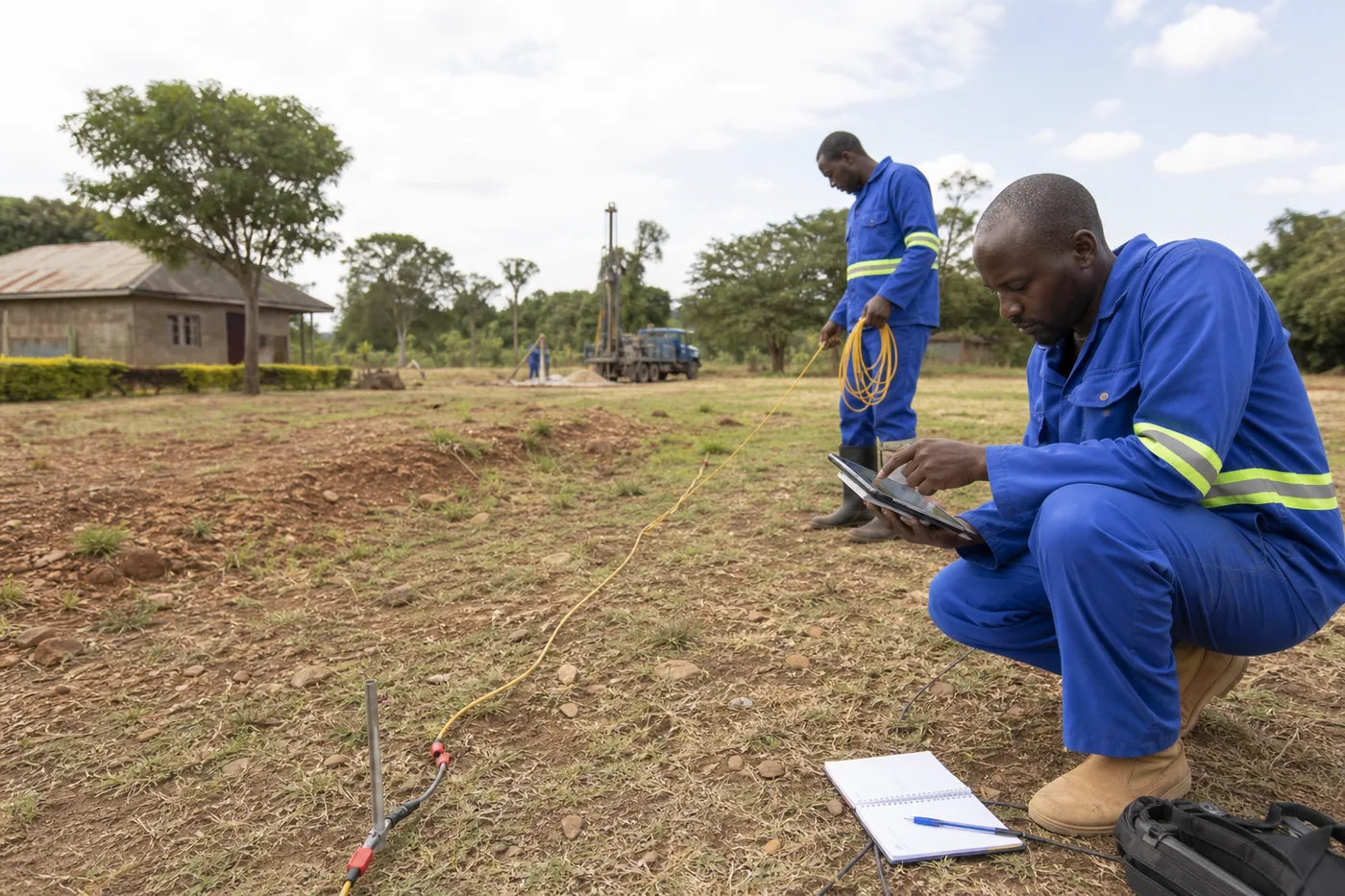

Do I need a hydrogeological survey before drilling?
A hydrogeological assessment is the evidence-led starting point for locating a proposed borehole and preparing the groundwater application. It may combine a desk review, site reconnaissance, geological reasoning, nearby records where legitimately available and suitable field investigation such as geophysical measurements. The report should identify the site and target, explain the methods and interpretation, recommend a drilling point and expected depth range, and state limitations. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
A survey reduces uncertainty but cannot guarantee water, depth, sustainable yield or quality. Those conditions are progressively tested during drilling, formation logging, borehole development, constant-discharge testing, recovery monitoring and laboratory analysis. Be cautious when a seller presents a survey as an insurance policy against all underground uncertainty. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Who obtains the WRA authorization and water permit?
The project owner or applicant should ensure that the correct authorization exists before drilling and that later permit requirements are completed. A hydrogeologist, consultant or drilling company may assist with reports, forms and submission, but the contract should clearly state who prepares each document, who pays official charges, whose name appears as applicant and who follows up with the Authority. Assistance by a contractor does not make it safe to begin without evidence of authorization. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
WRA describes a sequence in which an application and hydrogeological assessment are evaluated before authorization to construct abstraction works. After construction, the process uses completion documentation, a borehole completion record, water-quality analysis and final inspection before the applicable water-use permit is issued. Requirements and categories can change by project, so confirm the current checklist and fees directly with WRA rather than relying on an old message or quotation. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Is KSh 6,500 per metre the complete borehole price?
No. KSh 6,500 per metre is our published planning rate for air drilling on suitable stable ground with proper rock formation. Mud drilling on loose ground with little or no competent rock is budgeted at KSh 14,050 per metre. The professional assessment and encountered formations determine the appropriate method; an internet rate cannot diagnose the site. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
The drilled-metres calculation excludes or may not fully include survey, application support and official charges, mobilisation, casing and screens, gravel and sanitary seal, development, pumping test, laboratory analysis, pump, cable, controls, solar or grid equipment, tank, tower, pipelines, civil works, VAT, access preparation, security and other site obligations. A 100-metre project is therefore not simply 100 multiplied by one rate. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Why two 100-metre boreholes can have different totals
One site may allow air drilling, straightforward access and limited casing, while another may need mud circulation, temporary support, longer casing, remote mobilisation, more development or additional protection. Water demand also changes pump size, cable, controls, solar array, storage and distribution. Equal depth does not mean equal construction or an equal finished system. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Compare quotations with a common schedule of quantities. State drilling method, diameter and rate; casing and screen material and installed metres; development and test method; analysis; pump duty and make; power scope; storage; civil work; taxes; exclusions; failed-hole terms; payment milestones and written variation approval. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.

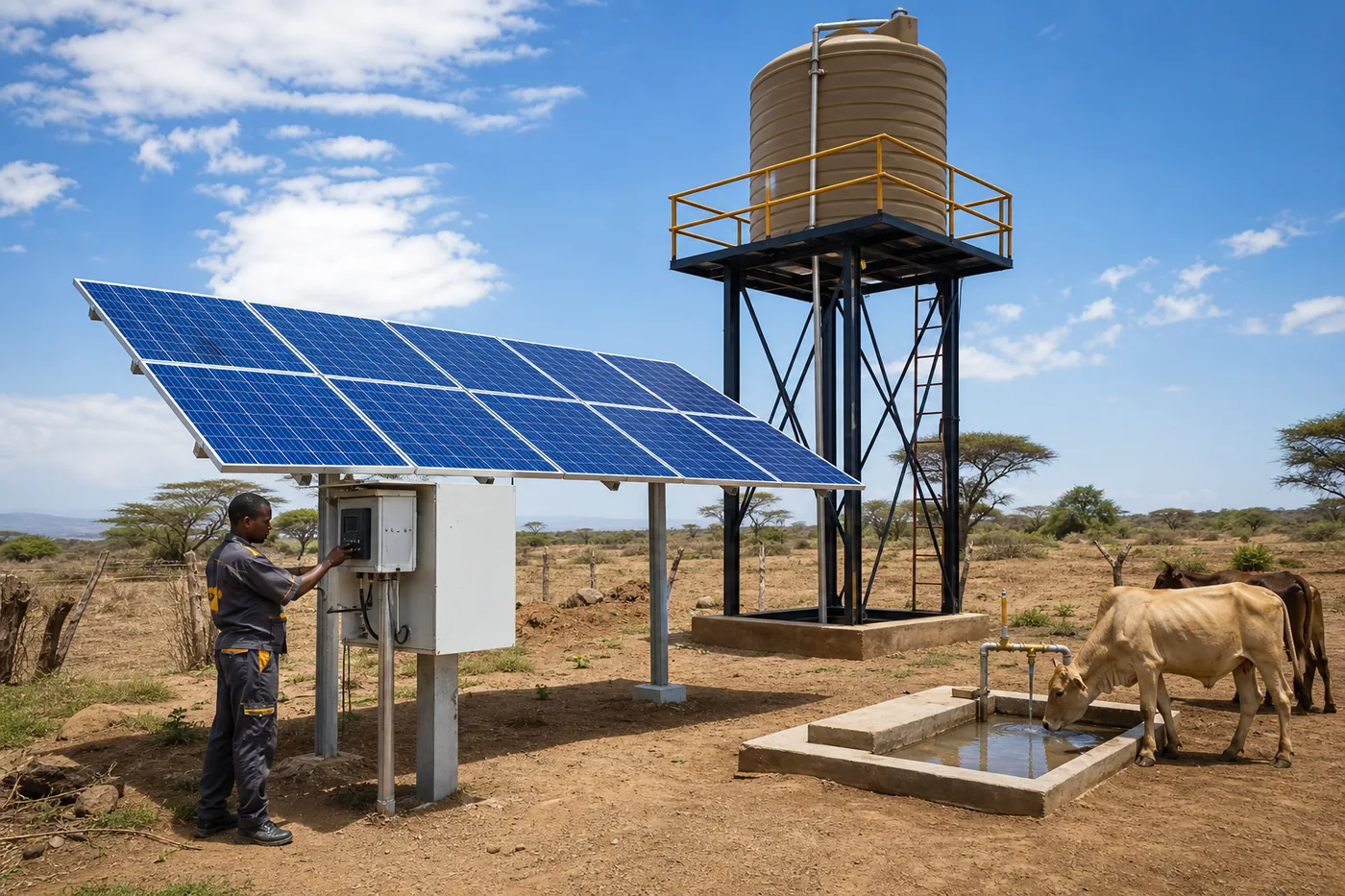

When should solar pumping be priced?
Solar can be discussed during early budgeting, but final pump and array selection should follow borehole performance evidence. The designer needs the intended daily volume, sustainable operating discharge, pumping water level, installation depth, elevation, pipe friction, delivery pressure, operating hours and seasonal solar assumptions. Depth alone is not a pump specification. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
A complete solar price can include the pump and motor, controller or inverter, modules, mounting structure, DC protection, isolators, surge protection, earthing, cable, sensors, rising main, headworks, installation and commissioning. Storage often provides night-time or cloudy-period resilience without a large battery, but its capacity must follow the demand and refill plan. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
What happens after drilling?
Drilling is followed by construction and development so the borehole is stable, protected and cleared of drilling residues and fines. A controlled pumping test records discharge and water-level response over time and normally includes recovery observations. These measurements support the recommended operating rate and pump duty; they should not be replaced by an unrecorded claim that the hole “has enough water.” Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Water analysis addresses the intended use and informs treatment where necessary. Pump selection, power, storage and distribution then turn the source into a usable system. Keep the survey, authorization, drilling log, as-built construction, development record, test data, laboratory certificate, pump curve, setting depth, electrical settings, warranties, completion record and permit together. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
| Budget component | Planning basis | Main driver |
|---|---|---|
| Hydrogeological survey | From KSh 45,000 | Assessment scope, site and method |
| Air drilling | KSh 6,500/m | Stable ground with proper rock formation |
| Mud drilling | KSh 14,050/m | Loose ground with little or no rock |
| Casing and screens | By installed metre | Diameter, material and construction design |
| Pump and controls | After test results | Yield, head, demand and power source |
The best way to request and compare a borehole quotation
Send every contractor the same site coordinates, access notes, survey status, expected depth range, intended use and demand, preferred power source, storage requirement and timing. Ask for itemised quantities and rates rather than one total. This makes omissions visible and reduces the chance that the lowest headline number wins by excluding essential work. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Verify the legal contracting party, relevant credentials, named team, proposed rig and compressor, comparable references, safety arrangements, documentation, programme, warranty and payment account. Select the offer that provides the best evidenced whole-project value—not merely the lowest drilling rate or the closest contractor. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
What “what you need before drilling a borehole in Kenya” should mean before you spend
A search for what you need before drilling a borehole in Kenya often begins with a price or supplier name, but the decision has to start with the outcome: a lawful, constructible and maintainable groundwater system. Define the site, intended use, daily and peak demand, target service life, available power and storage before comparing an equipment price or drilling rate. This turns a broad search into a procurement brief that contractors can answer consistently. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
The Water Resources Authority describes siting, construction, supervision and pumping tests as distinct groundwater-development disciplines. That matters commercially because an offer covering only drilling metres is not the same as a completed water system. Identify who supplies each professional stage, who carries the risk of incomplete information and which records will be handed over. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Evidence behind what you need before drilling a borehole in Kenya
Desk research should separate primary evidence from advertising. Legislation, regulator guidance, public specifications, signed quotations, manufacturer data and measured project records have different authority. A provider webpage can confirm what that provider publicly offers, but it cannot independently prove universal success, the best price or suitability for a particular geology. Date every source because fees, models, staff, branches and commercial offers change. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Public borehole tenders illustrate the detail expected in serious procurement: drilling technique, poorly consolidated horizons, casing, centralisers, development, testing, materials and supervision may all be specified. A private client does not need a government-length tender, but should borrow the discipline—defined units, measurable acceptance criteria and named documents. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Build a complete scope before requesting prices
Start with site coordinates, land authority, access width and gradients, overhead or underground services, nearby contamination risks and any existing survey or borehole records. Add expected demand by use, preferred operating hours, available electricity or solar area, storage objectives and distribution distance. Contractors can then distinguish assumptions from measured facts rather than hiding uncertainty inside one large contingency. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Divide the scope into assessment, approvals, mobilisation, drilling, construction, development, test pumping, laboratory analysis, equipping, power, storage, distribution, civil works and handover. State whether VAT, security, water for works, accommodation, access improvement and waste management are included. A complete schedule also makes later quotations easier to audit. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
What a constant-discharge record can contain
Illustrative training extract only—not an actual result for your site and not a pumping-test certificate.
| Elapsed (min) | Water level (m bgl) | Drawdown (m) | Discharge (m³/hr) | Observation |
|---|---|---|---|---|
| 0 | 46.89 | — | 28.6 | Gate valve fully open |
| 5 | 51.40 | 4.51 | 28.4 | Brown water clearing |
| 30 | 50.03 | 3.14 | 28.0 | Slightly clear water |
| 120 | 49.86 | 2.97 | 26.8 | Clear water |
| 360 | 50.38 | 3.49 | 26.6 | Clear water |
| 660 | 50.31 | 3.42 | 26.4 | Clear water |
| 1,380 | 50.34 | 3.45 | 25.8 | Clear water |
| 1,440 | 50.34 | 3.45 | — | Water sampled |
Air drilling, mud drilling and formation risk
Air drilling at the published planning rate of KSh 6,500 per metre is intended here for stable ground with a suitable rock formation. Mud drilling at KSh 14,050 per metre is intended for loose ground with little or no competent rock. These are commercial planning rates, not a geological diagnosis. The method should follow professional interpretation and the formation encountered by the rig. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
A Kenyan public borehole specification may require rotary drilling with bentonite through poorly consolidated sediments, demonstrating why one universal method cannot be imposed on every site. Diameter, depth, stability, fluid management, compressor demand, penetration rate and casing programme affect both productivity and cost. Agree how a necessary method change will be authorised and priced. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Hydrogeological survey and uncertainty
The calculator carries a hydrogeological survey allowance starting from KSh 45,000. That is a budget entry, not a guarantee of depth, yield or quality. A competent assessment combines available records, site reconnaissance, geological reasoning and suitable field measurements to identify a defensible target and explain limitations. Ask for the author, methods, coordinates, interpretation and recommended drilling point. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
WRA states that adherence to groundwater codes can reduce failure risk and support long-term investment. The wording is important: reduce risk, not eliminate it. Underground conditions are confirmed progressively through drilling, logging, development, pumping and analysis. Contracts and marketing should preserve that distinction rather than promise certainty before evidence exists. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Cost model for what you need before drilling a borehole in Kenya
A useful cost model multiplies the selected drilling method by chargeable metres, then adds casing and screens by installed metre, survey, mobilisation, gravel and seals, development, tests, pump, cable, controls, power, storage, distribution, civil works, taxes and contingency. It should prevent double counting where a per-metre rate already includes a component. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Model at least three cases: expected depth, a deeper case and a changed-construction case. For machinery acquisition, substitute landed equipment, tooling, compressor, crew, fuel, transport, maintenance, finance and idle time. For contractor selection, compare evaluated whole-project cost rather than the lowest visible line. Assumptions should remain editable and travel into the quote request. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Separate measured results from interpretation
Illustrative values only. Sampling, methods, limits and conclusions must come from an appropriate accredited laboratory and the current standard for the intended use.
| Parameter | Example value | Example reference | Reading note |
|---|---|---|---|
| pH | 6.93 | 5.5–9.5 | Review against intended-use standard |
| Turbidity | 1.33 NTU | 25 NTU | Illustrative pass |
| Chloride | 645 mg/L | 250 mg/L | Illustrative review |
| Fluoride | 0.42 mg/L | 1.5 mg/L | Illustrative pass |
| Total hardness | 1,025 mg/L | 600 mg/L | Illustrative review |
Technical records that protect the buyer
Request the hydrogeological report, authorisations, daily drilling log, formation and water-strike record, final construction details, installed material schedule, development record, test-pumping data, recovery observations, laboratory certificate, pump model and curve, setting depth, electrical protection settings, warranties and as-built information. These records make future maintenance faster and disputes more evidence-based. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
The 2021 Water Resources Regulations include groundwater protection and monitoring provisions, including metering and dipper-tube requirements for borehole abstractors. Project-specific conditions must be confirmed with WRA, but provision for measurement and access should not be discovered after the headworks are permanently completed. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Commercial comparison without misleading rankings
Use the same request for proposal and deadline for every bidder. Check legal identity, current professional and drilling credentials, equipment availability, relevant geology, safety arrangements, supervision, references, programme, subcontractors, insurance, payment milestones, variations, warranty and exclusions. Verify recent references directly rather than accepting a list at face value. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
A “best” or “cheapest” claim is a marketing statement until the evaluation criteria and evidence are visible. Publish why a company appears in a shortlist, disclose commercial relationships, avoid invented customer ratings and allow readers to visit the named company’s own current page. This is particularly important when the publisher also offers the service. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Lifecycle performance after handover
The lowest capital cost can produce high operating cost if the pump is oversized, the rising main creates avoidable losses, controls do not protect against dry running, storage is too small or maintenance access is poor. Pump selection should use tested discharge, pumping water level, installation depth, elevation, pipe losses, delivery pressure and operating schedule. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Keep monthly meter readings, pumping hours, energy use, water levels where required, faults, maintenance and laboratory results. Investigate changes in sand, colour, odour, flow, pressure, current or filling time before total failure. Responsible abstraction and preventive maintenance protect the aquifer, borehole, equipment and users. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
A defensible next step
Convert this research into a one-page site brief and a line-by-line request. Attach location, use, demand, existing reports, access notes, target programme and the assumptions you want priced. Ask bidders to flag missing information and offer alternatives separately rather than silently changing the base scope. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Use the calculator as a conversation starter, not a contract. Commission the appropriate professional assessment, confirm current approvals, compare written scopes and retain a contingency for geological change. That sequence gives what you need before drilling a borehole in Kenya a practical meaning: an informed decision supported by evidence rather than a search-result headline. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Site access, mobilisation and programme
Mobilisation is not merely the truck journey from a yard. A contractor must consider route restrictions, bridges, gates, turning radius, overhead cables, gradients, soft ground, rig setup space, compressor position, water supply, fuel, crew welfare, security and reinstatement. Photograph the access route and working area, share dimensions honestly and identify seasonal constraints. If grading, crane assistance or towing may be required, price it before equipment is dispatched rather than negotiating with an immobilised rig. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
The programme should distinguish approvals, survey, mobilisation, drilling, construction, development, testing, laboratory turnaround, pump procurement, installation and commissioning. Some activities depend on results from the previous stage, so a promised completion date may be conditional. Ask who communicates delays, how standby is treated, when materials are ordered and what happens when geology requires extra depth or a different construction decision. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.

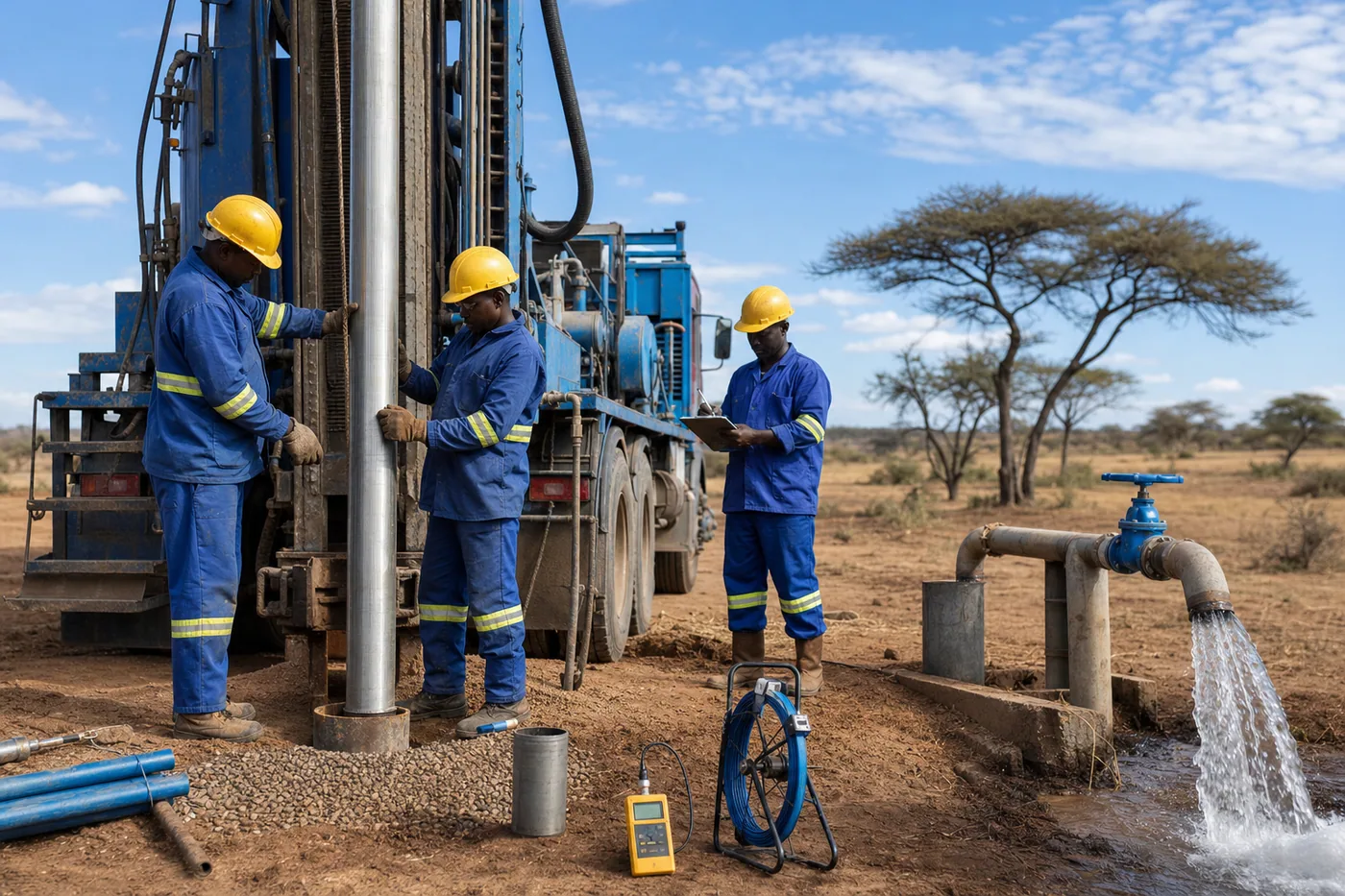

Casing, screens, gravel and sanitary protection
A borehole is a constructed intake, not an unsupported hole. Casing stabilises selected intervals; screens admit water while controlling formation material; gravel pack supports filtration around suitable screen sections; seals help prevent contaminated surface water from moving down the annulus. Material, diameter, wall thickness, slot selection, joints, centralisation and installed intervals must follow the design and conditions encountered—not an arbitrary percentage chosen only to make a quotation cheaper. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Ask whether the per-metre drilling rate includes temporary casing, permanent plain casing, screens, gravel, sanitary seal, welding or threaded joints and installation labour. Record actual installed lengths and material identification at handover. Public specifications separate many of these components because they are measurable and materially affect performance. A client comparing two totals without construction detail may unknowingly compare two different boreholes. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Test pumping, water level and sustainable operation
A water strike observed during drilling is not a proven operating yield. Test pumping applies controlled abstraction while discharge and water levels are measured, followed by recovery observations. The data supports an operating recommendation and provides inputs for pump selection. Duration, discharge steps, instruments and reporting should suit the project and applicable requirements. Ask for raw readings as well as the interpreted conclusion so a future professional can review the basis. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Static water level, pumping water level, drawdown, recovery and tested discharge answer different questions. Total drilled depth alone cannot select a pump. A pump also has to overcome elevation and pipe losses while delivering the required flow at the destination. Operating above sustainable yield risks excessive drawdown, dry running, energy waste and accelerated equipment wear; conservative evidence-led operation often produces better lifetime value. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Water quality, treatment and intended use
Clear water is not proof of safe or suitable water. Sampling and laboratory parameters should reflect intended use: potable supply, irrigation, livestock, institutional occupation, food processing and industrial processes do not present identical questions. Protect the sample chain, record the sampling point and date, and interpret results against the appropriate current standard or agronomic requirement rather than relying on taste, colour or a single headline measurement. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Treatment should respond to measured parameters and design flow. Iron, manganese, hardness, salinity, fluoride, nitrate and microbiological contamination require different responses, while some technologies create reject water or recurring consumable costs. Keep treatment as a provisional design stage until representative results exist. Request performance targets, maintenance tasks, consumables, waste handling and post-treatment verification before accepting a system. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Contract, payment and variation controls
The agreement should identify the contracting parties, site, scope, rates, taxes, payment milestones, programme assumptions, client responsibilities, ownership of reports, safety obligations, warranty, suspension rights, failed-hole provisions, dispute process and authorised payment account. Pay only against the company details stated in the contract or official invoice. A broker or introducer is not automatically authorised to change scope or receive money. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Variations are normal when genuine underground evidence changes the required work, but they should not be invisible. Define who can authorise extra metres, changed drilling method, additional casing, recovery work or standby; require the quantity, rate, reason and programme effect in writing where practicable. Preserve daily records and approvals. Commercial discipline protects both parties and prevents technical decisions from becoming arguments after irreversible work is completed. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Final buyer checklist for handover
Before accepting completion, walk through the wellhead, drainage, cap, access, electrical panel, protection devices, meter, storage controls and distribution operation. Reconcile the final depth and installed materials with the daily log and invoice. Collect reports, laboratory results, test data, equipment manuals, serial numbers, warranty contacts and recommended service intervals in one digital and physical handover file. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Agree the normal operating schedule, warning signs and escalation contacts. Record baseline flow, pressure, energy use and filling time, then compare future performance against that baseline. The finished project should leave the owner able to operate responsibly and a future technician able to diagnose it. That is a stronger definition of value than a low initial number or a machine photographed beside an unfinished hole. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
How to keep the research current
Treat every published price, licence statement, company service list and equipment specification as dated evidence. Before signing, revisit the regulator, obtain a current written quotation, verify the proposed personnel and equipment, and ask whether taxes, transport or material rates have changed. Save the source date beside each decision so another reviewer can distinguish verified facts from planning assumptions. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Create a short decision log showing the alternatives considered, evidence received, questions raised and reason for selection. Update it when the survey, drilling log, test pumping or laboratory results reveal new conditions. This simple practice prevents an early internet estimate from overriding stronger site-specific evidence and gives the owner, contractor and technical advisers a shared record of how the final solution developed. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
Before authorising irreversible work, hold a documented review with the owner, contractor and relevant technical adviser. Confirm the latest target, method, diameter, material schedule, test plan, payment milestone, safety arrangements and variation authority. After each evidence-producing stage, compare actual findings with the assumptions used in the budget. This control does not remove geological uncertainty, but it makes changes visible early, reduces avoidable misunderstandings and keeps the final installation connected to measured site conditions rather than an outdated search result. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Questions readers ask before committing
What is the first thing I need before drilling a borehole in Kenya?
Define the exact site and water demand, then commission the appropriate professional hydrogeological assessment before committing to drilling. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Can drilling start before WRA authorization?
WRA identifies illegal drilling without authorization as an offence. Confirm and retain the applicable authorization before construction starts. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
Who pays for and obtains the borehole permit?
The contract should state who prepares and submits documents and who pays each charge. The owner or applicant should still verify that the authorization and later permit are issued in the correct name and cover the project. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
How much is a hydrogeological survey?
Our current planning allowance starts from KSh 45,000. Final fees depend on site, travel, scope, field methods, reporting and application support. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
Is borehole drilling KSh 6,500 per metre everywhere?
No. KSh 6,500 per metre is an air-drilling planning rate for suitable stable rock. Mud drilling is budgeted at KSh 14,050 per metre, and final method and price require a site-specific quotation. Continue with our technical guide and verify context at WRA — Groundwater assessment and monitoring.
Does a 100-metre borehole cost 100 × KSh 6,500?
That gives only an indicative drilling line where air drilling applies. Survey, authorization, mobilisation, casing, development, testing, pump, power, storage, distribution, taxes and site works can materially change the total. Continue with our drilling services and verify context at Kenya Water Resources Regulations, 2021.
When do I select the solar pump?
Prepare an early allowance, but select the final pump and solar array after test-pumping evidence establishes the hydraulic duty and sustainable operating conditions. Continue with our project quote and verify context at Kenya public borehole survey, drilling, testing and solarisation specification.
What documents should I receive at handover?
Request the survey, approvals, drilling and construction logs, as-built details, test-pumping and recovery data, laboratory results, pump and electrical records, warranties, completion records and applicable water-use permit. Continue with our cost calculator and verify context at WRA — Water-use allocation and permitting process.
