float switch price in Kenya searches often start when a tank is overflowing, a borehole pump needs automatic stop/start control, or a new storage system needs a simple level signal. This guide uses the current 5m tank float switch listed by Borehole Drillers Kenya, then explains compatibility, wiring logic, tank placement, pump-control integration and complete installation scope so you can compare more than the small device price.
Why float switch price in Kenya matters for a borehole system
A float switch is a level-control device. In a water tank or reservoir, its position changes as the water level changes, allowing a compatible control circuit to receive a signal. That signal can be used to stop a borehole pump when a tank reaches its chosen high level or to request pumping when the water drops, depending on the controller and wiring arrangement.

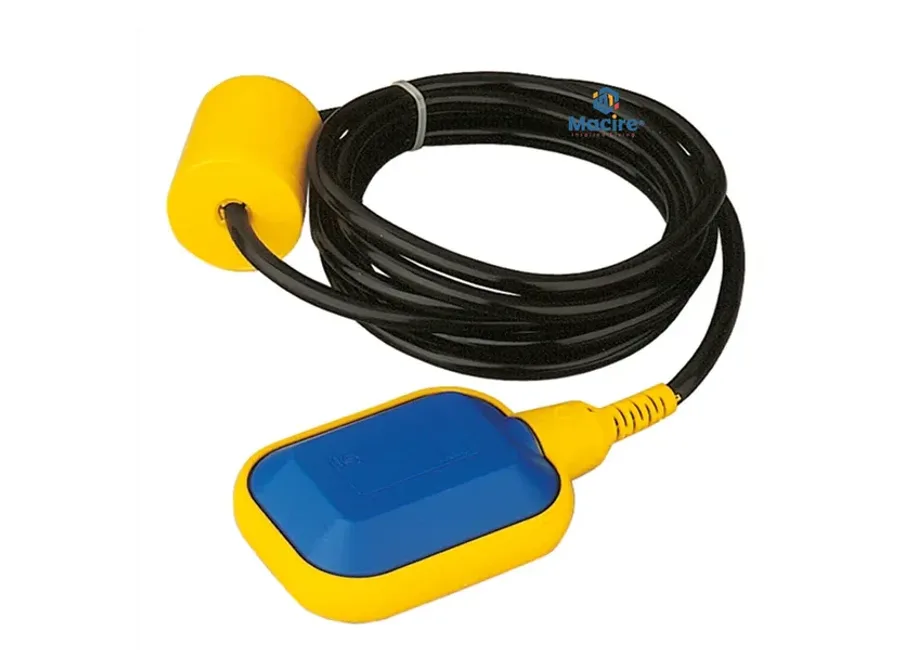

The current 5m Tank Float Switch listing is KSh 1,200. The verified site listing specifies a 5m cable, changeover contact, included counterweight and pump-control compatibility. Therefore, float switch price in Kenya should be compared alongside the control panel, electrical interface, cable routing, mounting position and commissioning needed for the switch to perform the intended function.
The device is inexpensive compared with a complete borehole installation, but its job is important. A poorly placed or incorrectly integrated level switch can allow nuisance cycling, fail to preserve reserve storage, or fail to stop pumping at the intended point. A useful float switch price in Kenya decision therefore begins with the control objective rather than with the switch alone.
Float switch price in Kenya: current product and verified details
| Item | Current listed price | Verified site details | What still needs confirmation |
|---|---|---|---|
| 5m Tank Float Switch | KSh 1,200 | 5m cable, changeover contact, counterweight included, pump-control compatible | Controller compatibility, tank geometry, cable route, wiring and installation |
This listing gives a clear equipment reference for float switch price in Kenya, but it is not automatically a complete installed-control price. If the tank is far from the pump panel, if extra control cable is required, or if the pump controller needs a relay or other interface, those items belong in the project scope.
For a wider view of pump electrical systems, read borehole pump control panel prices in Kenya. The float switch is often one input into that larger control arrangement.
How float switch price in Kenya connects to tank operating levels
Before buying a switch, decide what water levels should trigger action. A tank normally needs a high-level stop point below the overflow and a lower restart point that preserves useful storage while avoiding excessive pump cycling. With a tethered float, the counterweight and free cable length influence the movement range. The exact setup must match the switch design and tank geometry.
A simple control concept can be expressed as a level band:
In plain English, the operating level band equals the chosen high-water level minus the chosen low-water level.
A wider band can allow more water to be used before the next pump cycle, while a very narrow band can increase starts if the system is configured to respond directly to the level signal. That is why float switch price in Kenya should be discussed with the storage strategy, not only with the switch model.
Choosing the right approach for float switch price in Kenya
The correct arrangement depends on whether the float is controlling tank filling, protecting a transfer pump, indicating low level, or sending a signal into a more advanced panel. Start with the desired action, then check the electrical and mechanical compatibility.
| Design question | What to decide | Why it matters |
|---|---|---|
| Control objective | Stop at high level, start at low level, alarm or interlock | Determines how the changeover contact is used |
| Tank geometry | Shape, depth and internal obstructions | Affects free float movement |
| Cable length | Distance from float position to junction/control point | Determines whether the supplied lead is enough |
| Controller input | Accepted contact type and control voltage | Prevents unsafe direct switching assumptions |
| Cycle band | Difference between stop and restart levels | Influences usable storage and starts |
| Maintenance access | Ability to inspect and replace the float | Reduces future service difficulty |
When comparing float switch price in Kenya, do not assume that a device described as pump-control compatible should carry motor current directly. The safe arrangement depends on the rated contacts and the control architecture. In many borehole systems, the float acts as a control signal to a panel or controller rather than as the main power switch for the pump.
In plain English, for a tank with approximately constant plan area, usable volume across the control band is roughly tank area multiplied by the change in water level.
This relationship helps connect float switch price in Kenya to practical pump cycling. The actual tank shape may not have constant area, so use the manufacturer’s tank dimensions or calibrated volume relationship when precision matters.
Worked example: a borehole filling an elevated tank
Consider a site where a borehole pump fills an elevated tank during the day. The owner wants the pump to stop before overflow and restart after enough water has been used to justify another pumping cycle. The float position is selected so it moves freely away from the wall, inlet jet and internal pipework. The signal runs to the compatible pump controller.
The chart below is illustrative. It shows a simple operating band rather than a recommendation for a particular tank.
| Illustrative level | Index | Control purpose |
|---|---|---|
| High-level stop | 95 | Stop filling before overflow |
| Restart level | 65 | Allow meaningful drawdown before the next cycle |
| Reserve level | 30 | Operational reserve defined by the site plan |
The practical lesson is that float switch price in Kenya is the smallest part of the decision. Placement and control logic determine whether the switch actually improves system operation.
Features of our float switch price in Kenya control planning
| Feature | What it covers | Benefit |
|---|---|---|
| Tank-level review | High stop, restart and reserve targets | Connects automation to the water plan |
| Switch placement | Free movement and counterweight position | Reduces snagging and false operation |
| Controller compatibility | Input/contact logic review | Prevents unsafe switching assumptions |
| Cable routing | Lead length, junction and protection | Keeps the signal path serviceable |
| Commissioning | High/low action test | Confirms that the pump responds correctly |
| Maintenance plan | Inspection and replacement access | Makes future faults easier to diagnose |
Advantages of treating float switch price in Kenya as part of the whole control design include:
- Less tank overflow when the high-level stop is correctly placed and tested.
- More useful storage because restart level and reserve are planned together.
- Fewer unnecessary starts when the control band suits the tank and demand.
- Safer integration because the float is matched to the controller input.
- Easier troubleshooting when wiring, levels and commissioning results are documented.
Float switch price in Kenya pricing and installation scope
The verified current product price is KSh 1,200 for the listed 5m tank float switch. The product includes a 5m cable and counterweight according to the site listing. That is a useful equipment price, but a complete installation may require extra control cable, a junction enclosure, conduit, compatible relay or panel input, electrician labour and commissioning.
| Scope | Indicative price | What to confirm |
|---|---|---|
| 5m tank float switch | KSh 1,200 | Current site listing and stock |
| Extra control cable / routing | $— | Distance and installation environment |
| Controller interface | $— | Existing panel inputs and required components |
| Installation and commissioning | $— | Tank access, electrical work and functional testing |
When comparing float switch price in Kenya, ask suppliers to separate the switch price from the installed-control price. That prevents a low device price from hiding the real labour and integration work required.
Float switch versus pressure switch
A float switch responds to liquid level. A pressure switch responds to pressure in a pressurised water system. They solve different control problems, although a complete installation can use both. For example, the borehole pump may fill a storage tank through a float-level signal, while a downstream booster pump uses a pressure switch and pressure tank to serve buildings.
If your problem is pressure rather than tank level, read the pressure switch for water pump guide. Keeping these functions separate helps you compare float switch price in Kenya without buying the wrong control device.

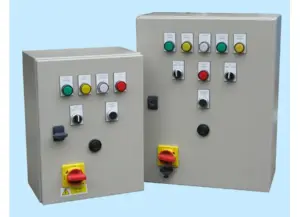

Float switch and borehole pump control panels
The borehole control panel can provide motor protection and accept external level-control signals where designed to do so. The current site also lists dedicated pump-control equipment, so the safest buying approach is to confirm the exact panel and float interface before wiring.
A level signal can be used as one part of the logic alongside overload protection, phase monitoring, dry-run protection or other controls. That wider architecture is why float switch price in Kenya should not be treated as the cost of full pump protection. The float knows tank level; it does not replace every other protective function.
How to position a float switch inside a tank
The float needs room to move through its intended range. Avoid locations where it can catch on ladders, inlet pipes, outlet fittings, tank reinforcement or other internal components. Also consider the inlet flow: a strong jet should not hold the float in an artificial position. The counterweight or fixing method should follow the switch design.
Access matters too. A switch is a service component, so future inspection or replacement should not require unnecessary dismantling. A practical float switch price in Kenya plan therefore includes installation access as well as the device itself.
For storage sizing and reserve planning, use borehole water tank size Kenya. The level-control settings should reflect the tank’s actual operating purpose rather than arbitrary percentages.
How to commission the float switch
- Confirm that the switch is mechanically secure and can move freely.
- Verify the controller input and wiring against the approved control logic.
- Simulate or observe the low-level condition and record the response.
- Simulate or observe the high-level condition and confirm pump stop or alarm action.
- Check that the tank does not overflow during normal filling.
- Confirm that the restart point leaves the intended reserve and avoids rapid cycling.
- Label the relevant control circuit and record the final switch position.
Commissioning is where the installed float switch price in Kenya earns its value. A switch that has never been functionally tested can appear complete while its wiring logic or placement is wrong.
Maintenance and troubleshooting
If a tank starts overflowing, do not immediately replace the switch. First check whether the float moves freely, whether the cable has been damaged, whether the controller is receiving the expected contact signal, and whether the pump output device is responding. Likewise, if a pump will not start, confirm that the level logic is genuinely calling for pumping before blaming the motor.
Keep the control diagram and commissioning result with the borehole maintenance records. That gives technicians a baseline when a level-control problem appears. Over time, the documented system is more valuable than a remembered wiring arrangement.
This approach also makes future float switch price in Kenya comparisons easier. You can buy a replacement based on the actual contact logic, cable requirement and tank duty instead of starting again from guesswork.
Common float switch mistakes
- Buying a switch before checking controller compatibility.
- Assuming the float can safely switch the pump motor directly.
- Mounting the float where it can snag on tank fittings.
- Placing the high-level point too close to overflow without commissioning margin.
- Using a very narrow level band that causes excessive starts.
- Failing to protect or extend control cable correctly.
- Ignoring maintenance access inside the tank.
- Testing the switch electrically but not testing actual tank-level operation.
Control tip: Write down what the float should do at low level and high level before anyone starts wiring. Clear logic prevents reversed operation and unnecessary troubleshooting.
How to get started with float switch price in Kenya
Start with the tank and the pump, not with the accessory. Identify the tank capacity, overflow level, desired restart level, pump controller model and distance between the tank and control point. Then confirm whether the 5m lead is enough and whether the controller accepts the switch contact directly.
Next, decide whether you need supply only or supply, wiring and commissioning. A complete quotation should list all required control cable, enclosures, interface components and labour. This keeps float switch price in Kenya transparent and prevents the device price from being mistaken for a full automation budget.
Float switch price in Kenya FAQs
What is the current float switch price in Kenya on this site?
The current 5m tank float switch listing is KSh 1,200. Confirm stock and any separate installation, cable or controller-interface costs.
What does a tank float switch do?
It changes an electrical contact according to water level, allowing a compatible control system to start, stop, alarm or interlock equipment.
Can a float switch stop a borehole pump?
Yes when it is correctly integrated with a compatible pump controller or control circuit designed for the switch signal.
Can I connect a float switch directly to the pump motor?
Do not assume direct motor switching is appropriate. The contact rating and control architecture must be checked; many systems use the float as a low-power control input.
Where should the float switch be placed?
Place it where it can move freely through the intended level range without snagging on pipes, ladders, walls or the inlet jet.
Why does my float switch cause frequent pump starts?
The operating band may be too narrow, demand may be high, or the float placement and control logic may need review. Check the complete system before changing the switch.
Is a float switch the same as a pressure switch?
No. A float switch responds to liquid level, while a pressure switch responds to system pressure.
Choose float switch price in Kenya from the control job
float switch price in Kenya is only KSh 1,200 for the current 5m product listing, but a dependable result comes from correct placement, controller compatibility, wiring and commissioning. Define the high and low operating levels, preserve the intended tank reserve, make the switch serviceable, and test the full control sequence before handing over the system.
Float switch price in Kenya for multiple-tank systems
Sites with more than one storage tank need a clearer control sequence than a single high-level stop. One tank may receive borehole water first while another tank is supplied through a transfer arrangement, or tanks may be connected so their levels equalise. In these cases, float switch price in Kenya should be evaluated beside the complete control sequence. Write down which pump should run, which level starts it, which level stops it and what should happen if one tank is already full.
A second switch can sometimes provide an independent low-level or high-level signal, but the exact design depends on the controller and hydraulic layout. Do not add switches without confirming how their contacts combine. Clear labelling and a simple control diagram make future service much easier. For float switch price in Kenya, the best-value installation is the one whose logic a technician can understand and test without guessing.
Documenting float switch settings after installation
After commissioning, record the tank name, switch location, cable route, controller terminal, high-level action and restart condition. Take a reference photograph of the final position where practical and keep it with the system records. If the switch is moved during tank cleaning or maintenance, the original operating level can then be restored intentionally.
This documentation protects the value of float switch price in Kenya over the life of the system. A future technician can distinguish a failed device from a moved counterweight, damaged cable or reversed control input. It also helps the owner decide whether a replacement switch needs the same cable length and contact arrangement or whether the system design has changed.
